Range of application
This series can be widely used in enclosed area for climate control, such as wireless communication cabinet, battery cabinet, electrical cabinet, industry control cabinet etc.
Product design feature
Remote measuring, remote communication, remote control , which can implement multiple automatic protection and comprehensive self-testing function; Strict process control and well-known brand components to ensure high quality and reliability of this product; Fit for harsh condition(T3), R134a envirmental friendly refrigerants; Multiple self -protection design & Visual human-machine interface, RS 485. communication port(MODBUS-RTU ); LED display, all the settings can be changed on site; The heating function and the hydrogen function is optional ; Dry contact alam output, NO/NC optional; Anti-theft design, without cowling.

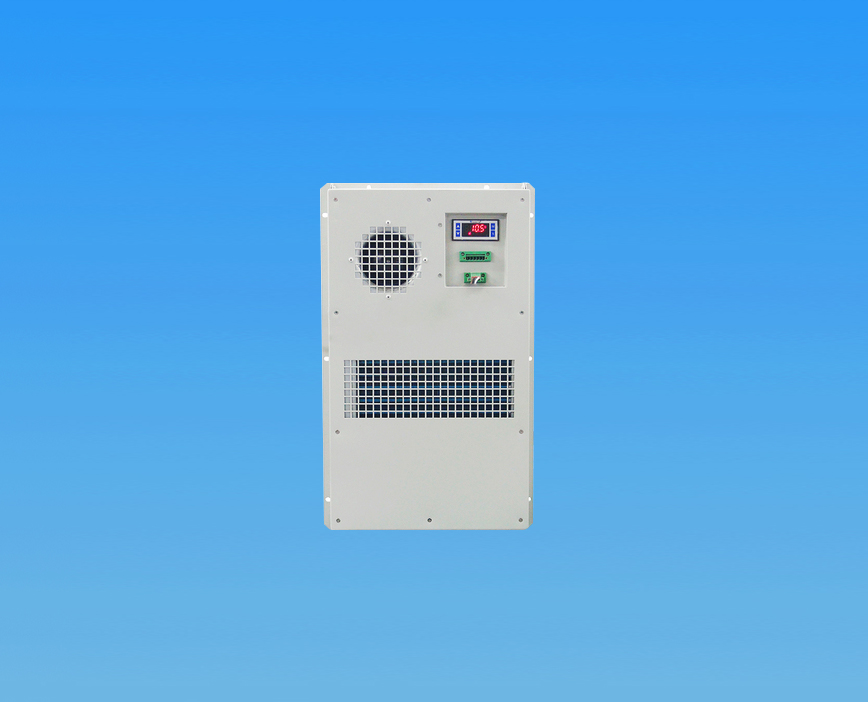

Name of Products | Indoor Enclosure Air Conditioner | ||
Model | SD-SA003/L/S/A | ||
Mounting Method | External Hanging Design | ||
Power Supply | 220VAC±10% 50Hz | ||
Cooling Capacity | 300W@L35/L35 | ||
Power Consupmtion | 200W@L35/L35 | ||
Internal Airflow | 120 m³/h | ||
Working Tenperature Range | -40℃~+55℃ | ||
MAX Noise Level | 60dB(A) | ||
IP Category | IP5X | ||
Net Weught | 14kg | ||
Refrigerant | R134a | ||
Dimentions | 455x285x167(mm,HxWxD) | ||
CE&RoHs | Compliant | ||
Surface Treatment | RAL7035 | ||
S/N | Symble | Definition | Description |
1 | L | AC Power Live line | 220VAC±10% 50Hz |
2 | N | AC Power Null line | |
3 | PE | AC Power Ground Electrode |
