Range of application
This series can be widely used in enclosed area for climate control, such as wireless communication cabinet, battery cabinet, electrical cabinet, industry control cabinet etc.
Product design feature
Remote measuring, remote communication, remote control , which can implement multiple automatic protection and comprehensive self-testing function; Strict process control and well-known brand components to ensure high quality and reliability of this product; Fit for harsh condition(T3), R134a envirmental friendly refrigerants; Multiple self -protection design & Visual human-machine interface, RS 485. communication port(MODBUS-RTU ); LED display, all the settings can be changed on site; The heating function and the hydrogen function is optional ; Dry contact alam output, NO/NC optional; Anti-theft design, without cowling.

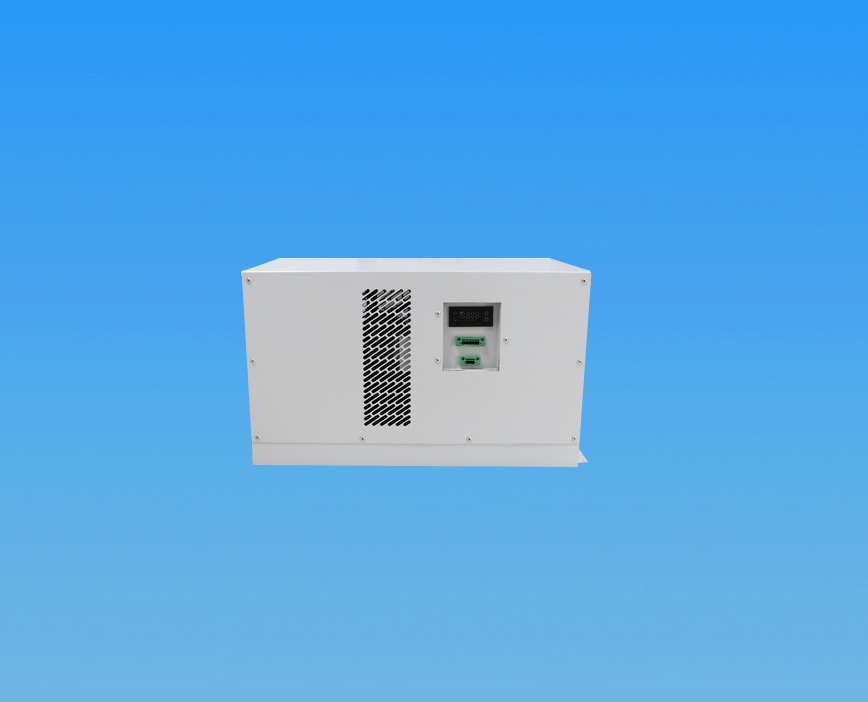

| Product name | Indoor enclosure cooling units | ||
| Product model | SD-SDZ010 /N/D/A | ||
| Mounting Method | Top-mounted | ||
| Power supply | 230VAC±15% 50Hz | ||
| cooling Capacity | 1050W@L35/L35 | ||
| Power consumption | 540W@L35/L35 | ||
| cooling output | 620W@L35/L55 | ||
| Power consumption | 650W@L35/L55 | ||
| Internal Airflow | 450 m³/h | ||
| Range of working temperature | -40℃~+55℃ | ||
| MAX Noise Level | 60dB(A) | ||
| IP category | IP5X | ||
| Net weight | 34kg | ||
| Refrigerant | R134a | ||
| Dimensions | 381x602x426(mm,HxWxD) | ||
| CE and RoHs Compliant | Compliance/YES | ||
| Surface finish | RAL7035 | ||
| Heater | Optional (1000W) | ||
| Hydrogen dischanging | Optional | ||
| S/N | Symbol | Definition | Description |
| 1 | L | AC power FireWire | / |
| 2 | N | AC power null line | / |
| 3 | PE | AC power Ground wire | / |
| 4 | A+ | RS485 Communication Positive | / |
| 5 | B- | RS485Communition Negative | / |
| 6 | NC | Dry contact alarm output NC Terminal | Dry contact alarm ：terminal 6、7：dry contact alarm NC Terminal |
| 7 | COM | Dry contact alarm common port | |
| 8 | I/O | Hydrogen dischanging or extenal control input terminal | Hydrogen dischanging portor eternal control input,choose one of above two function：Act asHydrogen dischanging port ：connect Hydrogen dischanging draught fan（AC or DC draught fan）the current of Hydrogen dischanging draught fan should less than 1A；Act as external control imput port: to accept external control signal to control air conditioner. |
| 9 |
