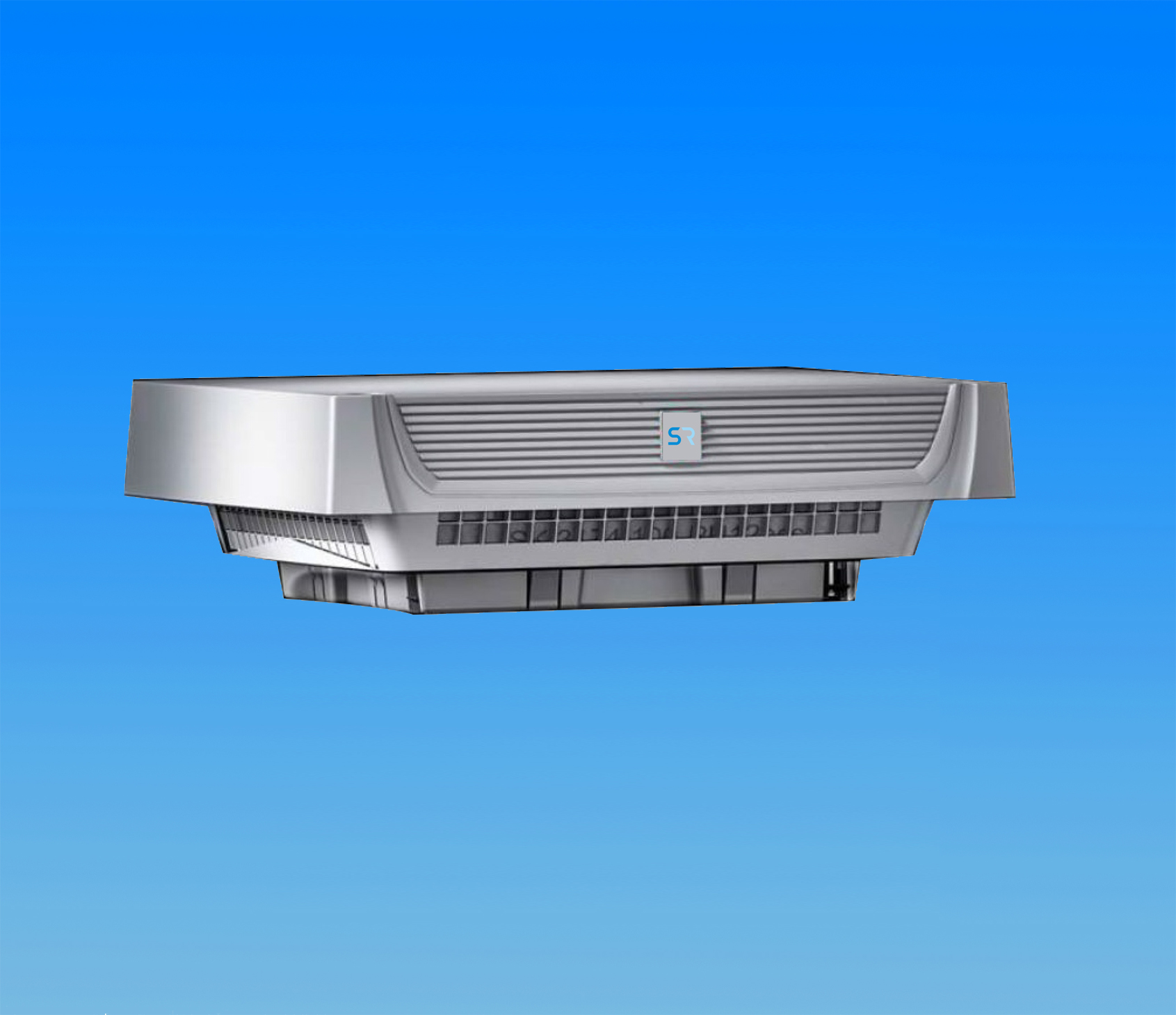

Product description
Roof-mounted fan with a high protection category and fexible
installation from the inside or outside.
Features
Material: ABS
Color: RAL7035
IP protection category: IP 21 without filter mat
IP 55 including filter mat
Supply includes: Complete unit ready to install, including filter mat
Note
A chopped-fibre filter mat may optionally be used to increase the
protection category to IP55 (see accessories).
To improve energy efciency and extend the service life of the
devices, we recommend the use of thermostats or temperature
displays
| Air throughput ;450-900m³/h | |||
|---|---|---|---|
| S/N | 11220417 | 11220725 | 11220900 |
| Rated operating voltage（V/HZ） | 230，1-，50/60 | ||
| Output air volume | 430/465 | 675/702 | 870/960 |
| Fan | Radial, capacitor motor | ||
| Rated current（A） | 0.28/0.31 | 0.46/0.51 | 0.6/0.75 |
| Power consupmtion（W） | 60/71 | 98/118 | 130/171 |
| Mounting cut-out（mm） | 258*258 | ||
| Noise level（dB） | 70 | 74 | 71 |
| Storage temperature range | -20°到+70 | ||
| Operating temperature rage | -25°到+55 | ||
| Accessories | |||
| Filter | 13000292 | ||
