Product descriptions

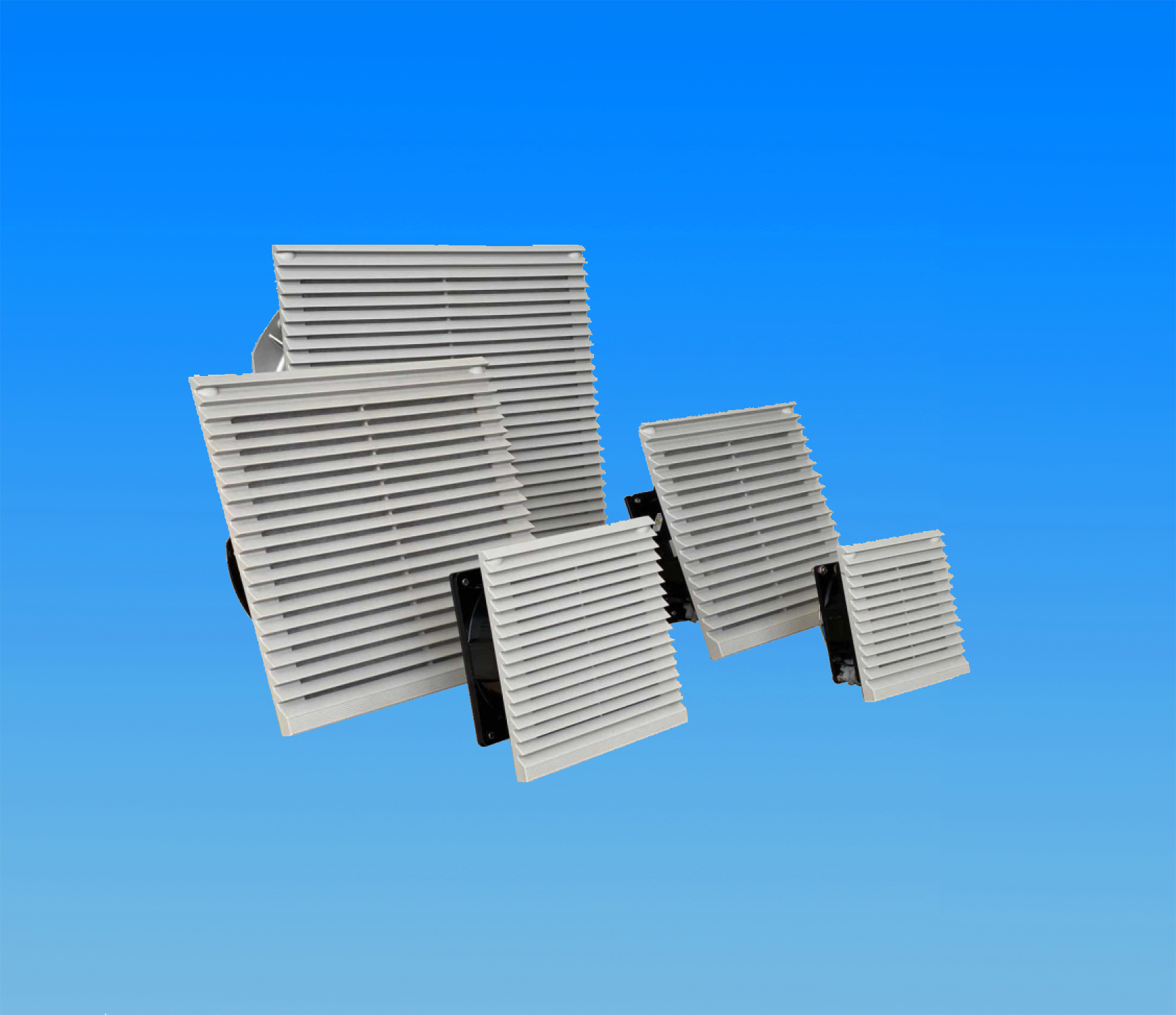

Fan-and-flter units with diagonal fan technology have superior
pressure stability and ensure a more constant air throughput. The
diagonal direction of outfow ensures more even heat dissipation
from the enclosure.
Characteristics:
Material: ABS
Color: RAL7035
Protection category: IP54, foam sealing rubber strip
Fan axial: double row roller ball bearing
Tool-free installation in surface
Features
| Air throughput ;20-50m³/h | ||||||
| S/N | 11024092 | 11115092 | 11220092 | 11024124 | 11115124 | 11220124 |
| Rated operating voltage（V/HZ） | Dc24 | 115/50/60 | 230/50/60 | Dc24 | 115/50/60 | 230/50/60 |
| Unimpeded airflow m³/h | 20 | 20/25 | 55 | 55/66 | ||
| Axial fan | Direct-current motor | self-shileding pole motor | Direct-current motor | self-shielding pole motor | ||
| Rated current max（A） | 0.18 | 0.12/0.10 | 0.07/0.06 | 0.3 | 0.24/0.2 | 0.12/0.10 |
| Power consumption pel（W） | 3 | 11/13 | 11/13 | 3.5 | 18/15 | 19/14 |
| Dimension（mm） | 116.5*116.5*10+47 | 148.5*148.5*10.5+57 | ||||
| Mounting cut-out（mm） | 92*92 | 124*124 | ||||
| Noise level（dB） | 36/38 | 50/52 | ||||
| Operating temperature range | -10°到+55° | -10°到+55° | ||||
| Accessories | ||||||
| Filters | 10000092 | 10000124 | ||||
| Thermostat | 71000000 | 71000000 | ||||
| Air throughput;105-230m³/h | ||||||
| S/N | 11024177 | 11115177 | 11220177 | 11024224 | 11115224 | 11220224 |
| Rated operating voltage（V/HZ） | Dc24 | 115/50/60 | 230/50/60 | Dc24 | 115/50/60 | 230/50/60 |
| Unimpeded airflow m³/h | 105 | 105/120 | 230 | 230/250 | ||
| Axial fan | Direct-current motor | Self-shielding pole motor | Direct-current motor | Self-shielding pole motor | ||
| Rated current max（A） | 0.3 | 0.24/0.20 | 0.12/0.10 | 0.46 | 0.51/0.42 | 0.26/0.2 |
| Power consumption pel（W） | 3.5 | 18/15 | 19/14 | 14 | 40/35 | 37/33 |
| Dimension（mm） | 204*204*12.5+82.5 | 255*255*12.5+105 | ||||
| Mounting cut-out（mm） | 177*177 | 224*224 | ||||
| Noise level（dB） | 50/52 | 48/52 | ||||
| Operating temperature range | -10°到+55° | -10°到+55° | ||||
| Accessories | ||||||
| Filters | 10000177 | 10000224 | ||||
| Thermostat | 71000000 | 71000000 | ||||
| Air throughput ;550-900m³/h | ||||||
| S/N | 11115292 | 11220292 | 12115292 | 12220292 | ||
| Rated operating voltage（V/HZ） | 115/50/60 | 230/50/60 | 115/50/60 | 230/50/60 | ||
| Unimpeded airflow m³/h | 500/560 | 900/970 | ||||
| Axial fan | Self-shielding pole motor | Self-shielding pole motor | ||||
| Rated current max（A） | 0.61/0.63 | 0.29/0.99 | 1.10/1.20 | 0.47/0.59 | ||
| Power consupmtion pel（W） | 61/71 | 65/77 | 110/1365 | 104/135 | ||
| Dimension（mm） | 323*323*12.5+129 | 323*323*12.5+129 | ||||
| Mounting cut-out（mm） | 292*292 | 292*292 | ||||
| Noise level（dB） | 62/64 | 68/70 | ||||
| Operating temperature range | -10°到+55° | -10°到+55° | ||||
| Accessories | ||||||
| Filters | 10000292 | 10000292 | ||||
| Thermostat | 71000000 | 71000000 | ||||
